The crush rib helps to evenly distribute the stress by redistributing the force of the injection process across a larger area But do you know how to design a proper crush rib for your injection molded parts Let s discuss this further Injection molding Crush rib design guidelines Figure 3 Test Print Crush Ribs
The Design Guideline for Injection Molding FacFox Docs, The recommended height radius for each rib is 2 mm Add a minimum interference of 0 25 mm between the crush rib and the fitted part Because of the small surface contact with the mold crush ribs can be designed without a draft angle Example of a crush rib left and recommended design dimensions right For best results Add a minimum
Design Tip Adding crush ribs to moulded parts Protolabs
When needed crush ribs can allow for draft and a tight fit for a part that requires both Figure 1 D shaped through hole in centre of gear part accepts the drive shaft Press fits for injection moulded parts can be challenging A well designed injection moulded part will usually have draft but the same draft that helps eject a part from the
Injection molding The manufacturing design guide, An example of a part with crush ribs is shown below Using three crush ribs is recommended to ensure good alignment The recommended height radius for each rib is 2 mm Add a minimum interference of 0 25 mm between the crush rib and the fitted part Because of the small surface contact with the mold crush ribs can be designed without a draft
Getting to the point with Crush Ribs Design Engineering
Getting to the point with Crush Ribs Design Engineering, This could allow wobble in the finished assembly 3 A good compromise option is to add crush ribs Crush ribs can give you the best of both approaches draft for the molder and the same alignment you d get with a straight sided hole The main hole is drafted for ease of ejection and protection of the mold and three or more undrafted ribs
How To Add Ribs To Prevent Risks For Your Part Design Natech Plastics
Design Tip Adding crush ribs to molded parts
Design Tip Adding crush ribs to molded parts 3 A good compromise option is to add crush ribs Crush ribs can give you the best of both approaches draft for the molder and the same alignment you d get with a straight sided hole The main hole is drafted for ease of ejection and protection of the mold and three or more undrafted ribs along the length of the hole create a tight fit and

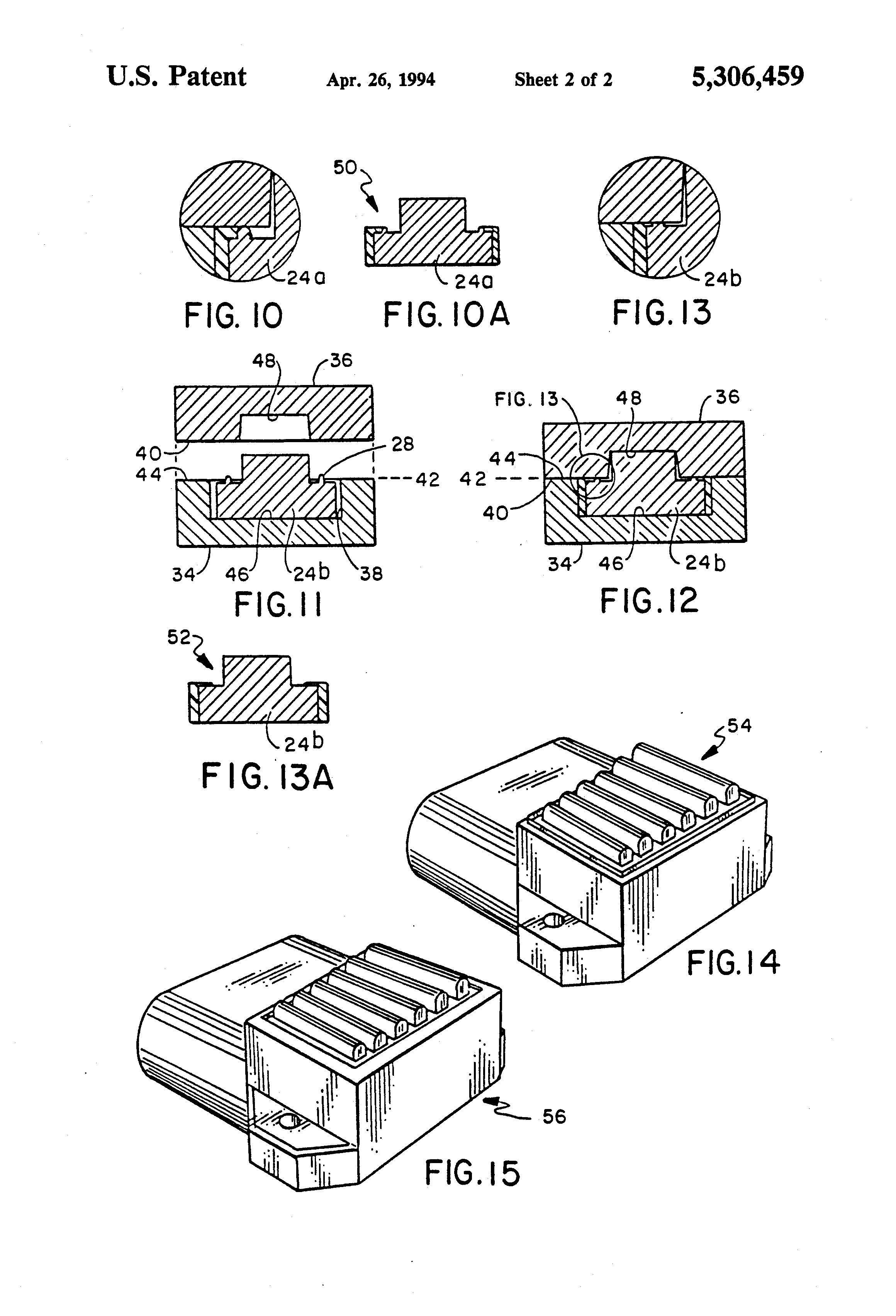

Patent US5306459 Insert Molding Method Using A Crush Rib Google
Large ribs can be replaced with multiple smaller ribs Rib Draft The draft angle of a rib should be between 0 5 and 1 5 degrees to allow for easy part ejection Only crush ribs should be made without a draft angle Rib Spacing When you create multiple ribs they should be spaced out by at least 2 5 to 3 times the nominal wall thickness In Plastic Ribs for Injection Molding Design Xometry. Crush ribs plastic design is frequently used in holes or other components that must be press fit with another part In producing crush ribs for plastic parts manufacturers usually make them either pointed or rounded Below are some helpful crush rib guidelines Fabrication of ribs with minimal thickness is essential for preventing thick Adding Common Design Features Ribs are used to improve stiffness without increasing the wall thickness Ribs should be half of the main wall thickness and should be shorter than 3 times their own thickness Crush rubs are an inexpensive way to attach bearings or inserts to a design When designing crush ribs remember to add an overlap
